The proof of concept images for the vending machine hack were lost. How did I get them back?
August 9, 2020: I was starting to piece together my last weekâs post, when I opened Google Photos for the images to be included as proof-of-concept. Unfortunately, I couldnât find them anymore. Then I remembered factory resetting my phone two weeks after, so they must have been wiped since I do not remember backing them up. But you saw my last post, and it has those images. How did I get them back?!⊠Through an HTTP Archive file and some amazing Linux tools.

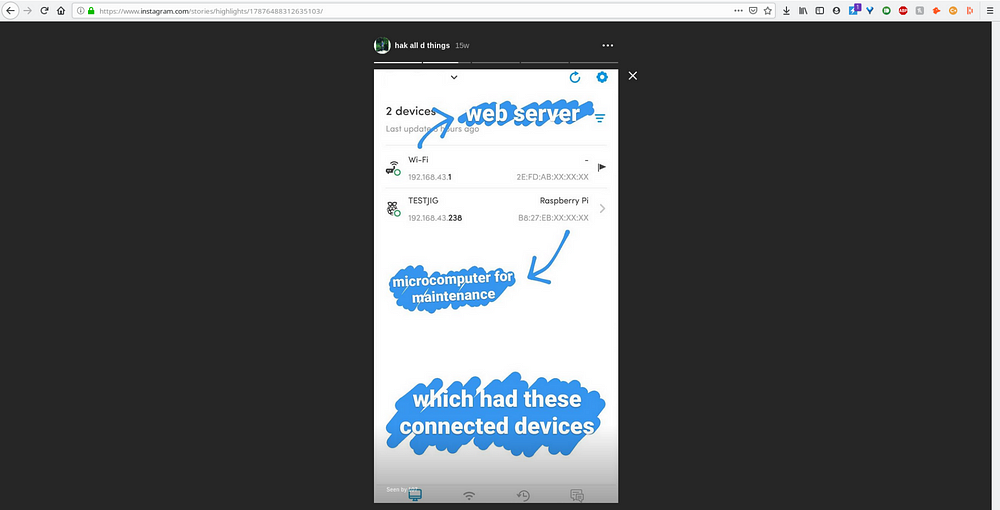

I posted few photos of the hack on Instagram stories some 4000 years ago. Luckily, I added them to the profile highlights as well.
4000 years ago
Now that theyâre stored on Instagram servers, I just need to find a way to get them on my computer since there is no âSave to Deviceâ option in the app menus. I quickly logged in to Instagram web to see if they have the highlights function there and if so, I can get links to those images using the most amazing piece of hacking software there is⊠the Developers Tools.

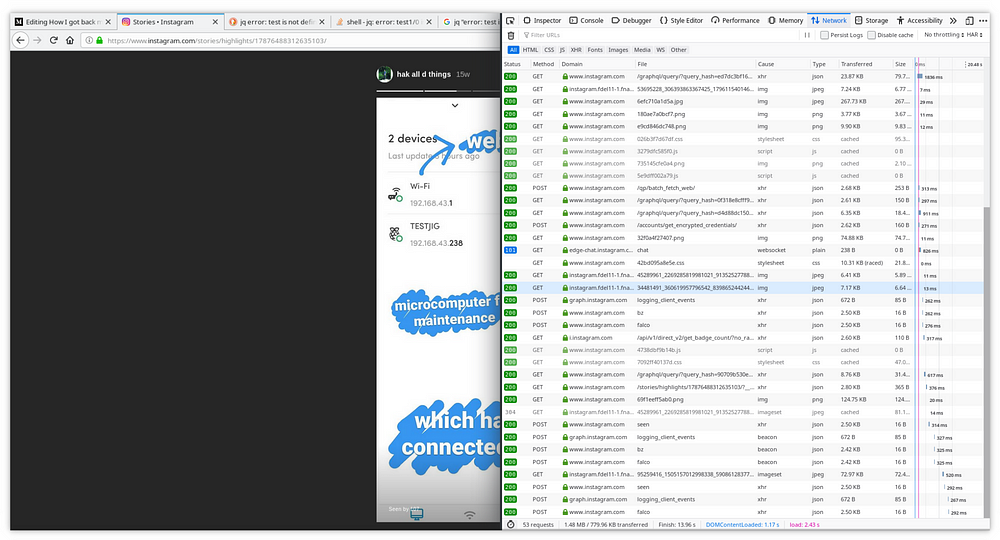

notice the domains and file types
I opened the console to see GET requests with the source image request URLs. Awesome! I can download the images now,⊠but should I? They were NINE images, NINE links to be clicked and saved manually using more clicks. The math is too much! I decided to look for a more automated solution in case thereâs ever a need to scale up. Enter HAR.

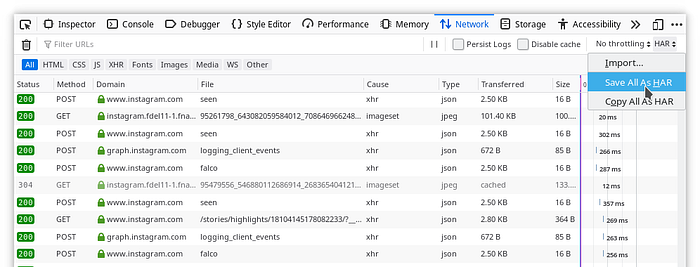

never used it for its original purpose but this is a good start
This HTTP Archive file, which can be exported from the Networks tab, is a JSON file containing detailed performance data of the browser about the webpage it loads. This would include the image requests URLs Iâm interested in. Iâve been looking for a way to collect request URLs like this for ever, and Iâve finally found it during this engagement.

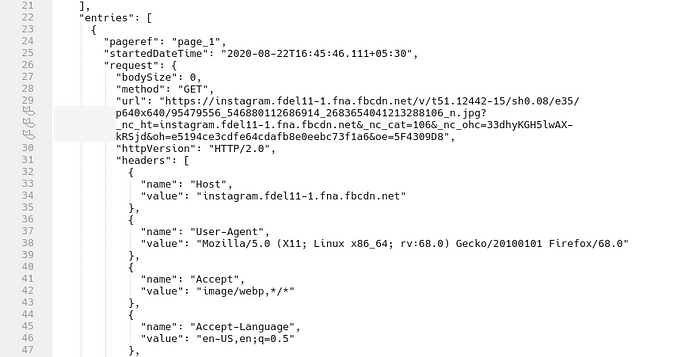

the servers keep changing so this HAR becomes obsolete in a few days
After analyzing the JSON structure, I found which request URL values I need. Itâs the one with host as âinstagram.fdel11â1.fna.fbcdn.netâ. I used jq for parsing through this JSON data, all 15,566 lines of it. I thought about using grep or awk or sed but I suppose they would have required a lot more tweaking. Plus I wanted to get better at jq, since Iâve only used it once before.

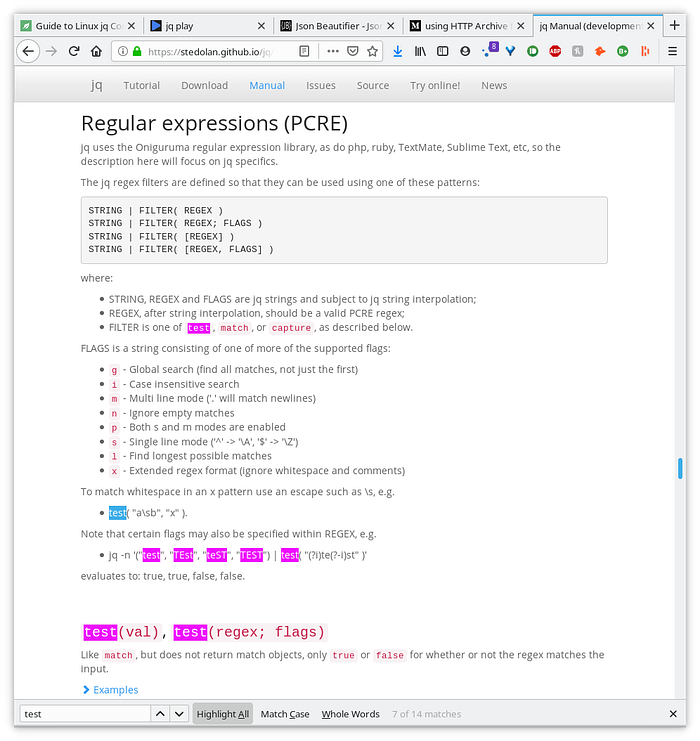

finding string matching techniques
I spent some time reading up on how to traverse arrays, creating a regex for string matching the URL, also trying to resolve a recurring âerror: test is not definedâ . Let me know if you managed to solve this because I couldnât get it working on my terminal. So I resorted to using their online playground for testing⊠A one-line bash command for extracting direct image URLs from the HAR file. And another one to download them.

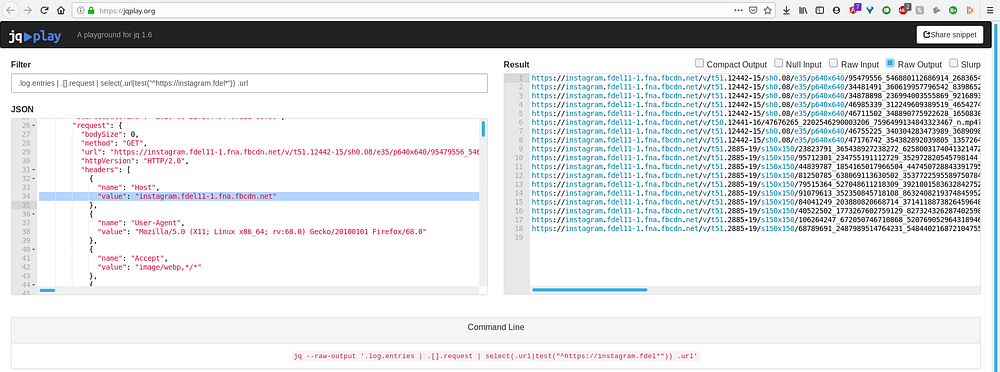

18 URLs because profile pictures loaded when I accidentally clicked on chats
At this point I had everything I needed, complete with a bash script to go over the URLs, and download the images using wget. Because everything looks cool in script?! Take a look for your experimental pleasures :p
only it doesnât work on my machine. yet.
This is an example of how problem solving works in the real world. Taking existing random knowledge bits, sometimes learning new bits as well and connecting them in a clever way to get results. Click below to see my last weekâs post where I used these images for proof of concept.
